Fobo Tyre 2 Smart Bluetooth 5 Tyre Pressure Monitoring System for your car
FOBO TYRE 2 monitors tyre pressure in real-time while driving or when within Bluetooth range. It detects a slow or fast leaks and alerts users to anomalies. It then transmits readings to an In-Car unit and smartphone the user can browse. The user can set upper and lower thresholds of the air pressure for each axle.

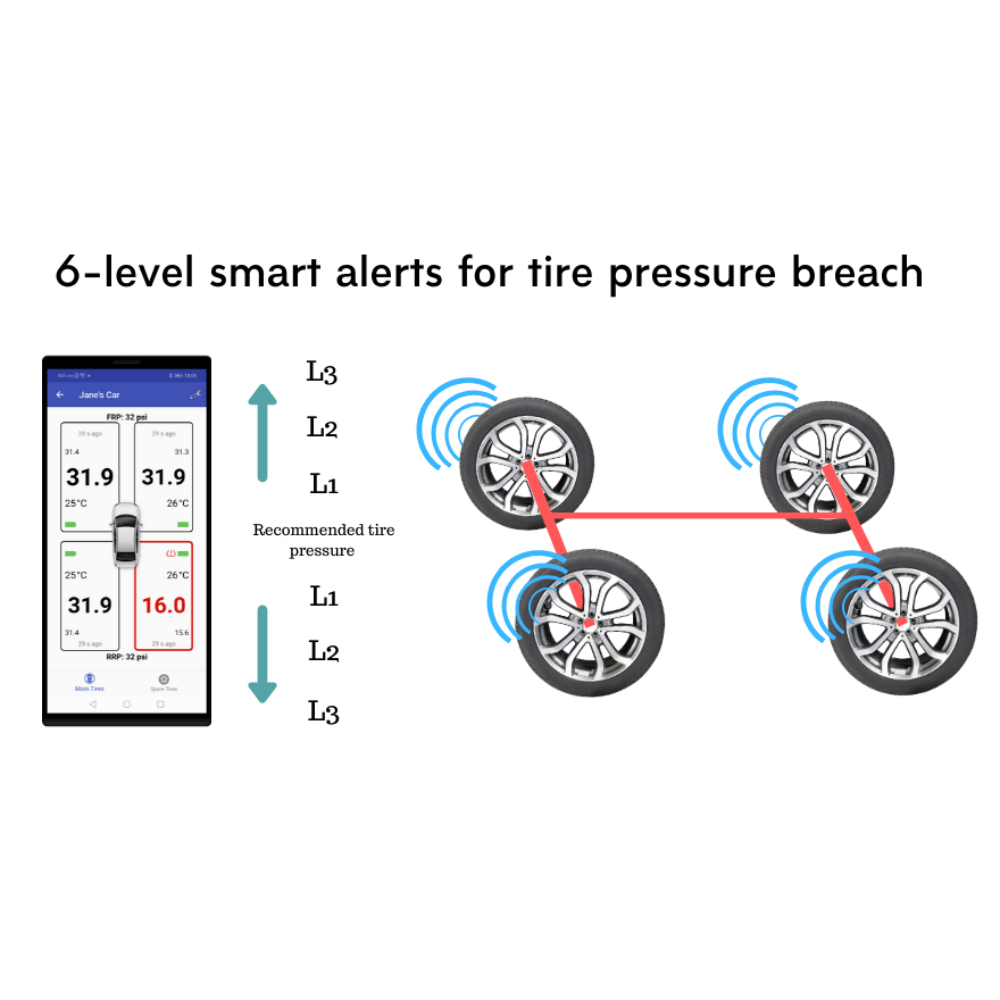

With an intelligent In-Car monitoring unit that works on its own or simultaneously with your smartphone, FOBO TYRE 2 monitors up to 800 kPa (116 psi) and gives you an alert in the absence of a smartphone. It will monitor the pressure with its smart algorithm and will provide 6-level of alerts when the thresholds are breached.

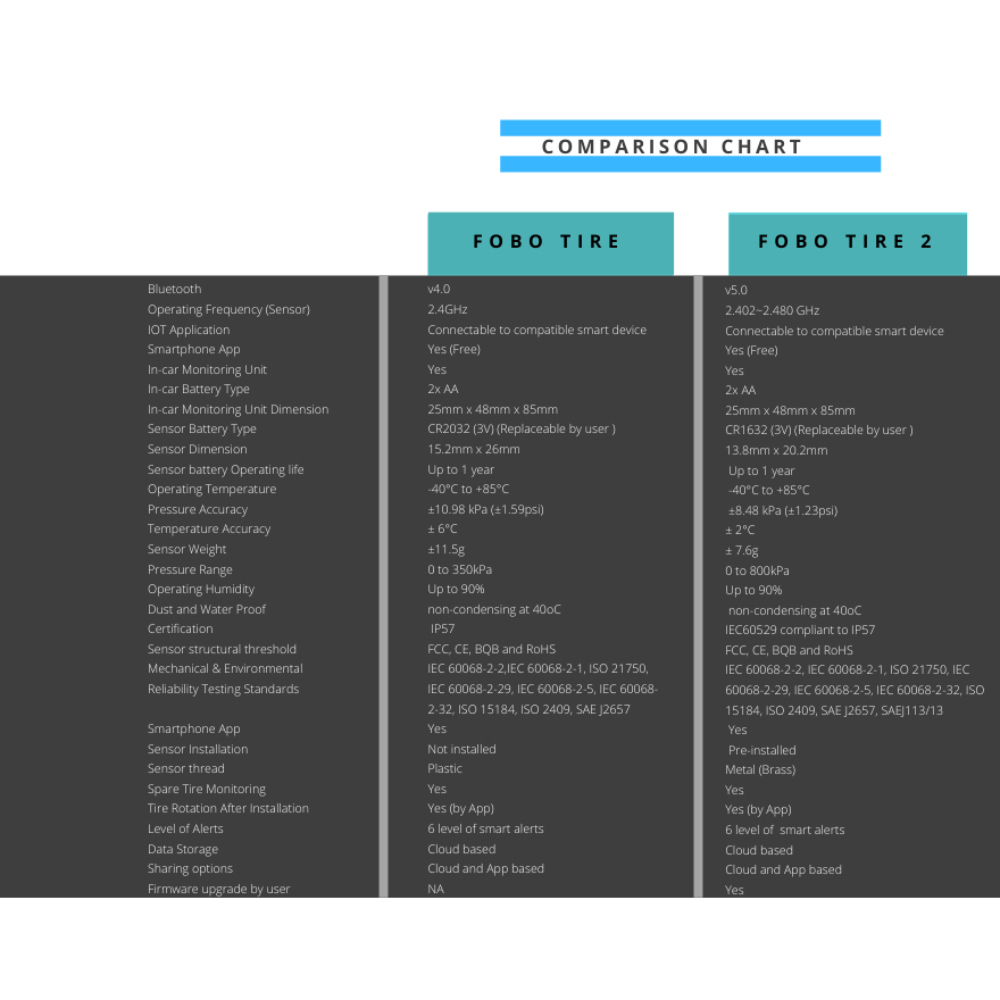

FOBO TIRE 2 sensor Specification:
- Bluetooth: v5.0
- Transmit Conducted Power: +5.0dBm (sensor)
- Receiver Sensitivity: Conducted Sensitivity -97dBm @ 0.1%BER
- Antenna Return Loss: Typical -9dB
- Operating Frequency: 2.402~2.480 GHz
- attery Type: CR1632 (sensor). Operating life up to 1 year. (NOTE: The battery operating life varies according to usage and climate temperature)
- Operating Temperature: -40°C to +85°C (sensor), -20°C to +60°C (sensor with common CR1632 batteries)
- Weight: 7.6g (sensor –with battery)
- Sensor Dimension H x D: 13.8mm x 20.2mm
- Maximum Pressure:800kPa (116psi)
- ESD: 8kV air discharge & 4kV direct contact discharge according to CE standard
- Operating Humidity: up to 90% non-condensing at 40oC
- Dust and Water Proof:IEC60529 compliant to IP57(sensor)
- Sensor structural threshold: 100N ball pressure intensity test
- Mechanical & Environmental Reliability Testing Standards:IEC 60068-2-2, IEC 60068-2-1, ISO 21750, IEC 60068-2-29, IEC 60068-2-5, IEC 60068-2-32, ISO 15184, ISO 2409, SAE J2657, SAEJ113/13
FOBO TIRE 2 In-car unit Specification:
- Weight:~44.6g (In-Car – without batteries)
- In-Car unit Dimension HxWxL: 25mm x 48mm x 85mm
- Battery Type: AA (In-Car). Operating life up to two years. (NOTE: The battery operating life varies according to usage and climate temperature).
- Operating Temperature: -20°C to 65°C (In-Car)
Do i need to install FOBO TYRE 2 sensors one by one?
FOBO TYRE 2 sensors inside the packaging box are pre-installed with the in-car unit; you do not need to install the sensors one by one.

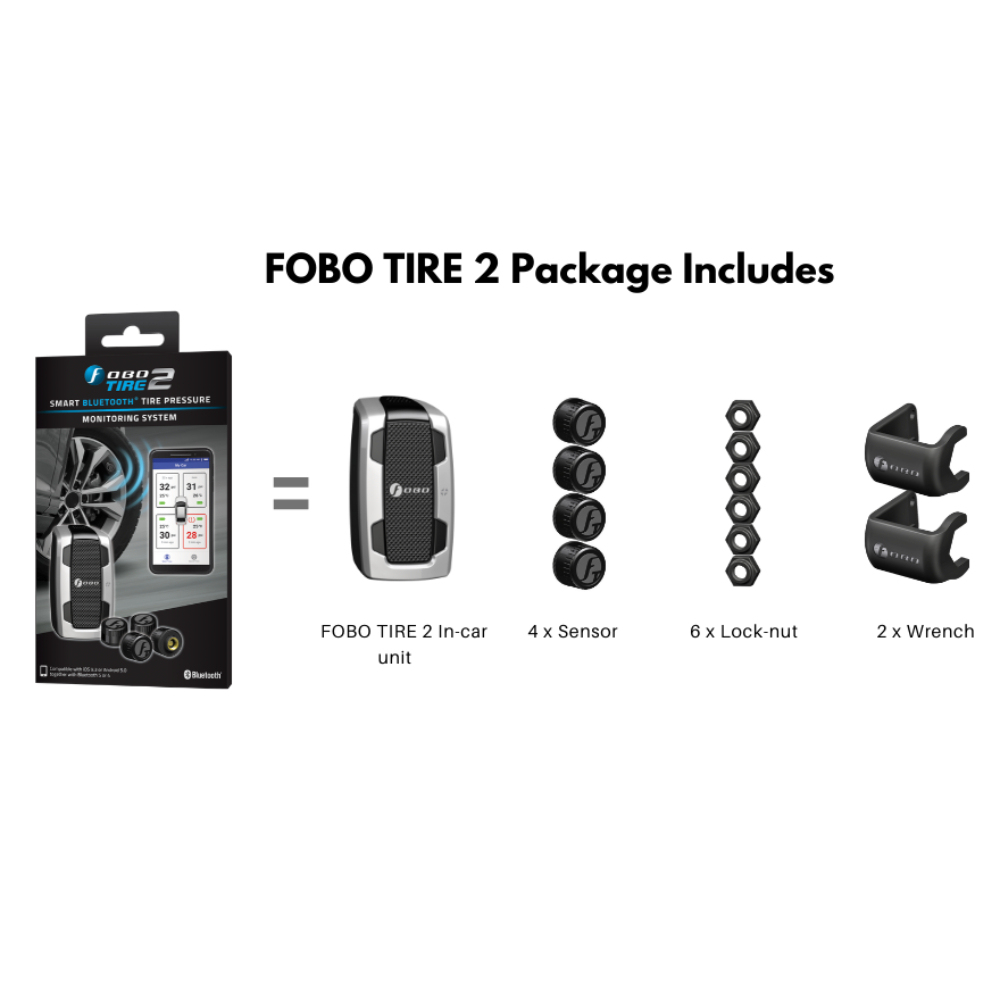

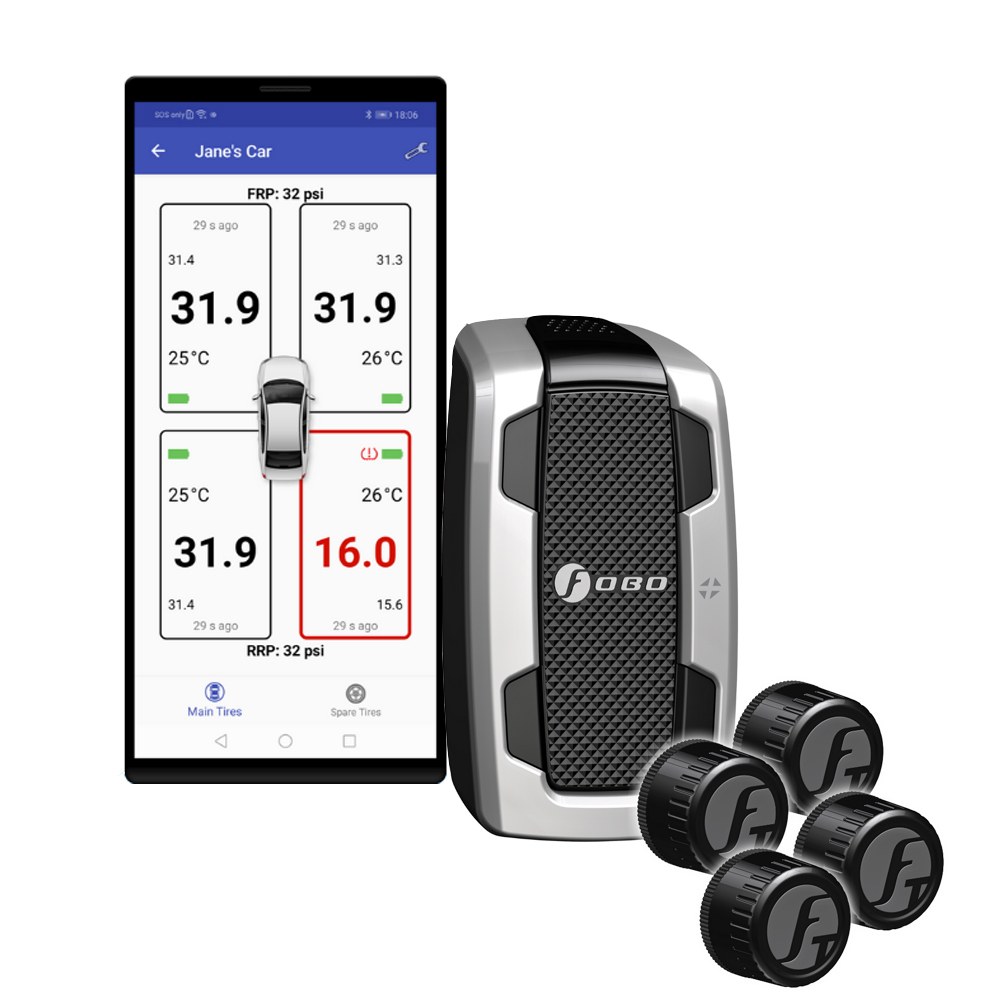

What do I get in FOBO TYRE 2 set?
a) 4 tyre sensors (with CR1632 batteries included)
b) 1 In-Car unit (with 2 AA size batteries included)
c) Anti-theft lock-nuts and wrench
d) Free "FOBO TYRE 2" app to be downloaded from the Apple App Store or Google Play Store
What phone does FOBO TYRE 2 work with?
FOBO Tyre 2 works with Android and iOS smartphones with Bluetooth 4.0 and above. Please ensure you update to the latest OS, at least Android 5.0 and iOS 12 or later.
How long can I use FOBO TYRE 2?
FOBO TYRE 2 uses 2xAA batteries for In-car Unit and CR1632 battery for sensor units. These batteries are easily available from local stores and would last up to 1 year for sensor and 2 year for In-car Unit on normal operating temperature. Operating in extreme cold climate may reduce the battery operating life.

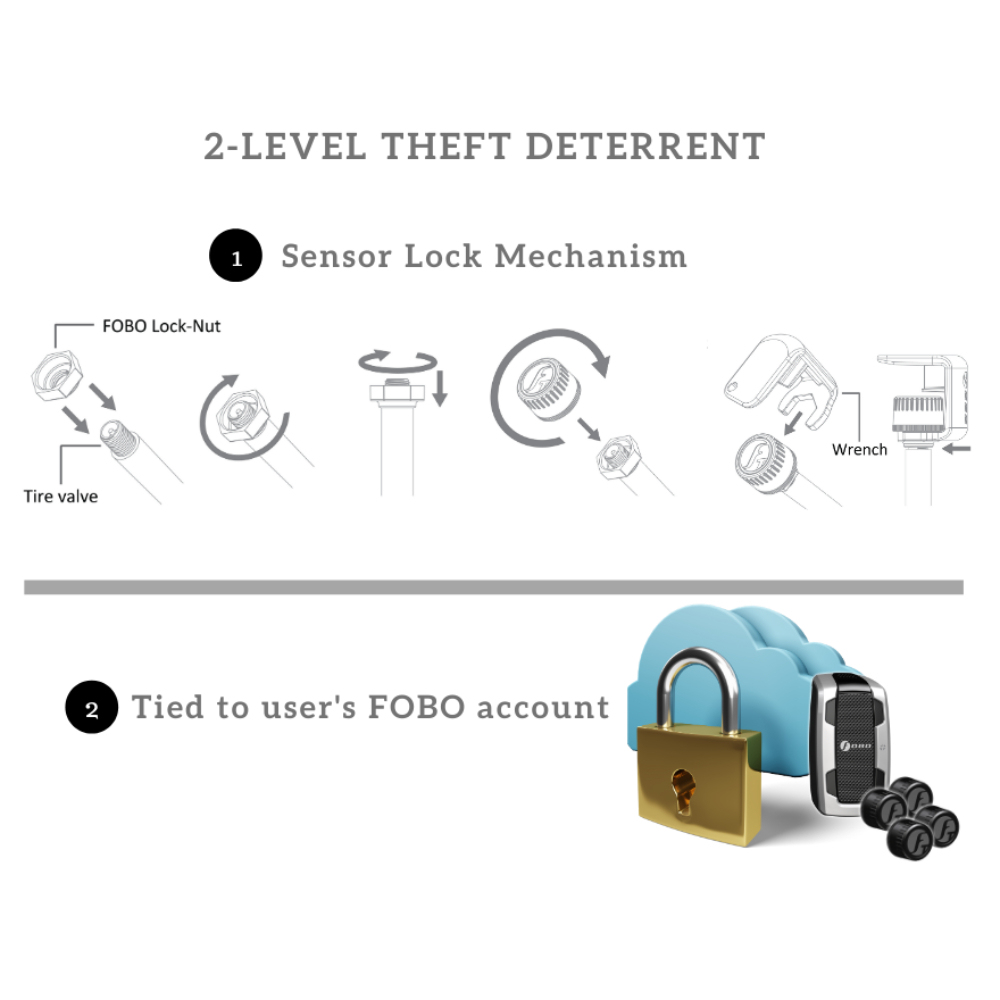

How to ensure my FOBO TYRE 2 sensors not stolen?
FOBO TYRE 2 comes with two theft deterrent features. FOBO TYRE 2 units are not re-usable if stolen, thus discouraging potential thieves. The package also comes with anti-theft nuts and a small wrench to mechanically lock the sensors.
Can FOBO TYRE 2 work without a smartphone?
You will need a smartphone in order to install FOBO TYRE 2 and change settings. Once installed, FOBO TYRE 2 will work even without a smartphone, in case your smartphone is not with you. The In-car Unit will alert with different alert tones in case of tyre problems.
Can I keep In-car Unit at home after the installation and monitor sensors with smartphone?
In-car Unit is an integral part of the system and need to be placed inside the car near to the dashboard where it is not enclosed. It works as a secondary device to alert you incase you forgot your smartphone at home.
Can FOBO TYRE 2 sensor work in all weather conditions?
FOBO TYRE 2 sensor is designed to operate under extreme cold and hot climate. And it's tested for water proof (IP57).
What if there is more than one person driving my car? Can they use the FOBO TYRE 2 in my car?

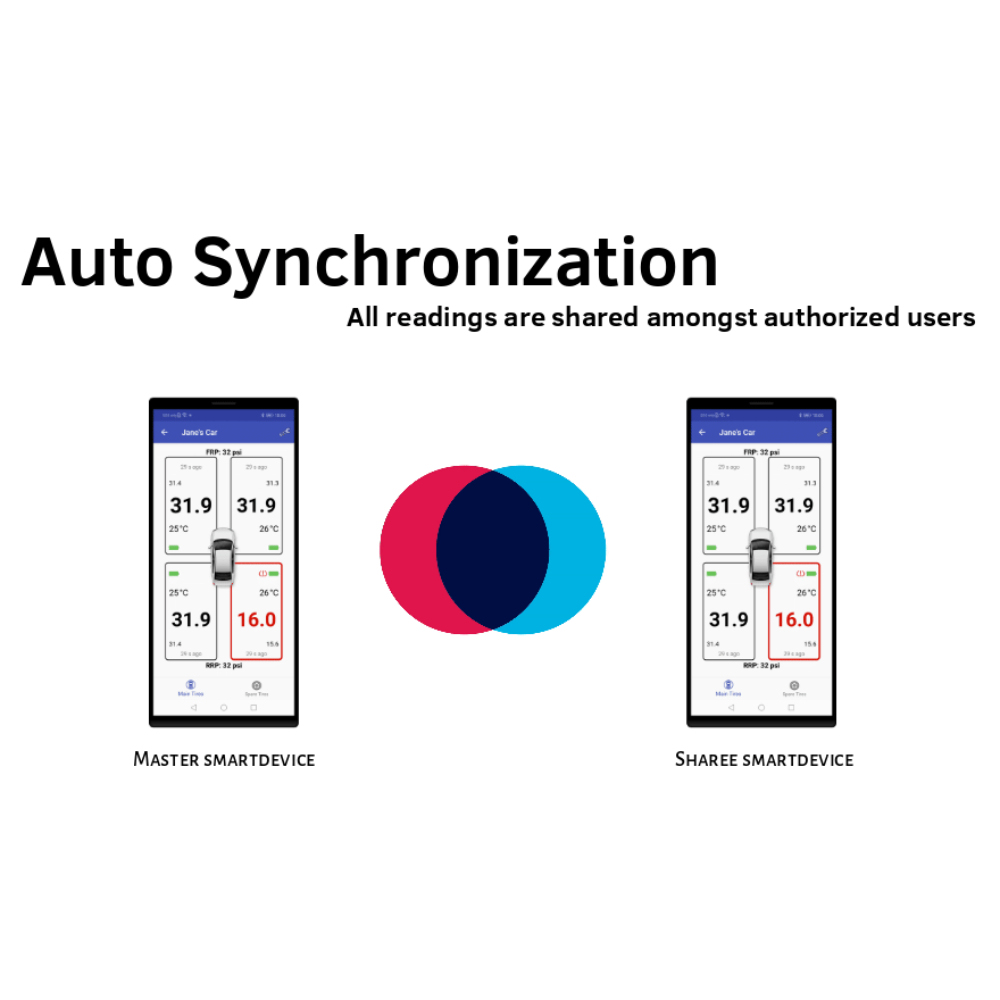

You can share FOBO Tyre 2 in your car with family and friends. Use FOBO share option in the App to Key in their e-mail address that will be used to login to their FOBO TYRE 2 account and it will be synchronized with FOBO cloud via our CrossPair technology. Please ensure they have downloaded FOBO TYRE 2 App on their smartphone and activated it with their email.
How far away can I detect FOBO TYRE 2 readings?
FOBO TYRE 2 uses Bluetooth to send out signals. Typical range 30 meters line of sight without anything blocking the signal.
Will FOBO TYRE 2 work for trucks or big vans?
FOBO TYRE 2 works on four wheel vehicles with tyre pressures below 116 psi (800 Kpa). You can add additional sensors under extra sensor profile (such as for spare tyre).
How can FOBO TYRE 2 work when my car engine is turned off?
Your smartphone will pick up signals from FOBO TYRE 2 sensors via Bluetooth. You can check your car tyre pressures any time knowing that they are working 24x7 round the clock continuously monitoring the tyres for you.
Does FOBO TYRE 2 affect tyre balancing?
FOBO TYRE 2 sensor weight is 7.6 grams each but extensive testing has shown a maximum deviation of 5 grams on the wheel balancer. Typical wheel balancing equipment in the market has a resolution of 5 grams as well. The deviation of 5 grams is to be considered acceptable and there is no need to rebalance the wheels after installing FOBO TYRE 2. This is in line with our tyre experts.
What should I do if FOBO TYRE 2 sensors cannot read tyre pressure on first installation?

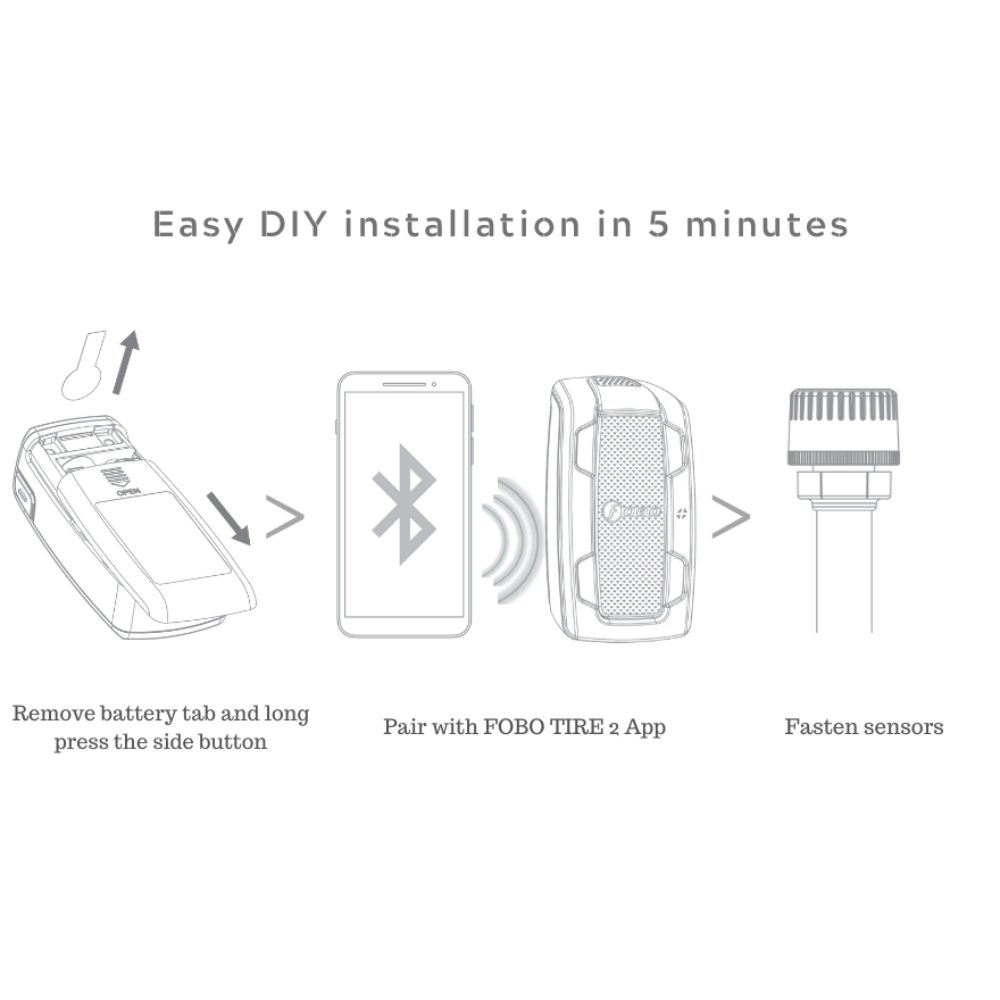

All FOBO TYRE 2 sensors are pre-installed with the In-car Unit; you do not need to install the sensors one by one. Just follow the instructions, remove sensor battery tab and install sensor on the position as mentioned on the battery tab. If you did not receive pressure readings after installing a sensor, remove the particular sensor battery and insert back.
Can I calibrate FOBO TYRE 2 sensors?
FOBO TYRE 2 does not need calibration.
Does FOBO TYRE 2 read absolute pressure or gauge pressure?
FOBO TYRE 2 sensor report absolute pressure and has an internal formulation coupled with Absolute Pressure reading to display readings as if users are at sea-level, even though FOBO readings are taken at ANY altitudes. Fobo TYRE 2 readings should match the placard pressure and user should inflate their tyres according to FOBO TYRE 2 reading instead of handheld pressure gauge in the event there are differences between these two readings due to altitude factor and gauge accuracy.
Do I need to release the whole system if I am changing my smartphone?
No, you just need to download the App on your new smartphone and login using the same email address under which the system is installed. All the details will be synced from our server to your new smartphone.
Do I need to release the whole system if I am changing my car?
No, you just need to dismount the system from your old car and mount on your new car. Please label the sensor with its position to avoid mounting the sensor at wrong position. You can change the car profile image & name by using the FOBO TYRE 2 App.
